Description

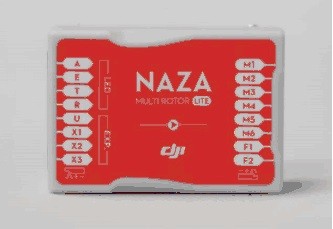

Key features of NAZAM Lite :
All-in-one Design: inner damping, controllers, 3-axis gyroscope, 3-axis accelerometer and barometer in its light and
small Main Controller.
Multiple Types of Multi-rotors Supported: Supports six types of multi-rotor Quad I, Quad X, Hexa I, Hexa V, Hexa Y,
Hexa IY;
Multiple Flight Control Modes/Intelligent Switching: GPS Atti. Mode (with GPS module), Atti. Mode, Manual Mode.
Intelligent Orientation Control/Failsafe Mode/ Two Levels of Low Voltage Protections/ PPM, S-BUS & Ordinary
Receiver Supported/ Built-in Gimbal Stabilization Function.
FUNCTIONS
Manual Mode;
Atti. Mode;
GPS Atti. Mode;
Intelligent Orientation Control(IOC):Course lock/Home lock
Enhanced Fail-Safe:Landing / Go Home & Landing;
Quad-rotor I, X; Hex-rotor I, V; Y, IY;
Combination Stick Command to start; Immediately Mode and Intelligent Mode to stop;
Remote gain tuning;
Two-axis gimbal supported, Multi Gimbal Servo Output Frequency Supported;
Support Normal receiver, D-Bus Port support S-bus and PPM receiver;
Voltage Monitor and Low Voltage Protection;
4 channels transmitter support;
Five-level Motor Idle Speed adjustable in Motor Mixer;
IMU Calibration function;
NOTICES
For safety reason, do not use power battery during firmware upgrade.
Make sure reconfigure all parameters after upgrading firmware.
